性能特點
Main Feature
1. 該設備是根據家裝中空玻璃客戶的特點，對玻璃清洗要求潔凈、無水痕，玻璃傳輸表面無痕的要求，特殊設計定做一款在中空于玻璃合片前傳輸段全部采用雙橫梁結構，達到玻璃在傳輸過程中盡量減少與背靠輪的接觸，從而達到中空玻璃表面無痕的高品質要求！
2. 自動識別鍍膜和Low-E 玻璃的膜層面
3. 清洗機風刀根據玻璃厚度自動調整
4. 鋁框自動定位，玻璃自動定位系統
1. This equipment is specially customized to the home decoration insulating glass customers.That is, the glass washing effect is clean, no water marks, and the glass transmission surface has no traces of conveyor rollers marks. In order to meet requirements of no trace on insulating glass surface,we adopt the double beam structure in transmission section
2. Automatic detect coated surface of coating glass and Low-E glass
3. Air knife can automatic adjust according to glass thickness.
4. Aluminum spacer and glass automatic positioning system
技術參數
Main technical parameter
最小玻璃尺寸（Min.glass size)：300mm×450 mm
清洗玻璃厚度（Washing glass thickness)：3~19 mm
清洗玻璃速度（Washing glass speed)：3~10m/min
電功率（Power supply)：380V/50Hz 37.5kw
中空玻璃厚度(Insulating glass thickness)：12~60mm
傳送玻璃速度(Transmission glass speed)：45 m/min
氣壓(Air pressure）：0.7Mpa
充氣時間（Gas filling time）3~5s
主要技術參數（Main Techniq ue Parameter） | ||||||||

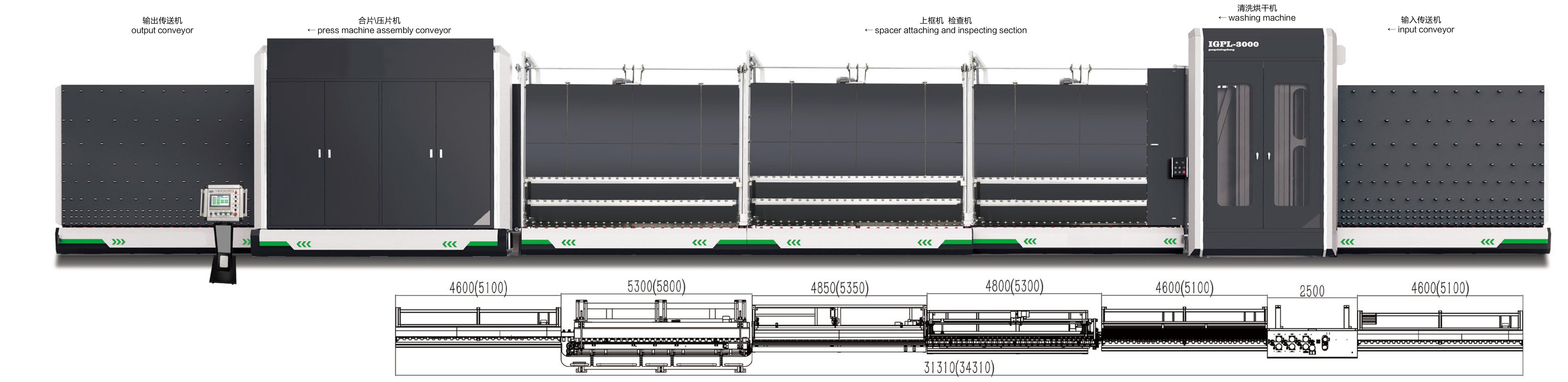

產品型號 Product model | 最大玻璃尺寸mm Max.glass size | Low-E | 三 層 triple glazing | 四層 four layers | 設備尺寸 L×W×H Dimension mm | 功 率 Power supply | 功能段 Function section | 板外合片 outside assembly |
IGPL2700 | 2700×4500 | √ | √ | √ | 31000×3000×3750 | 38.5KW | 7 | 選裝Optional |
GPL2800 | 2800×5000 | √ | √ | √ | 34000×3000×3850 | 41.5KW | 7 | 選裝Optional |
